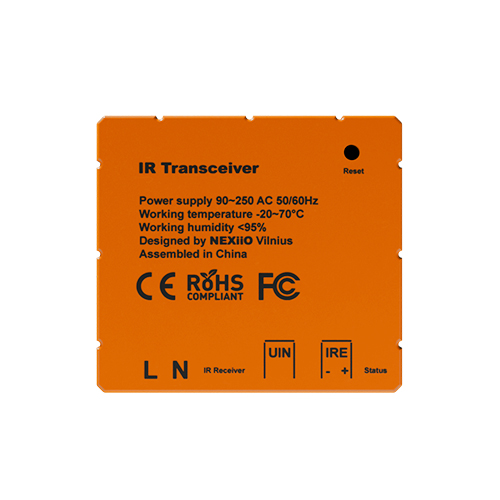

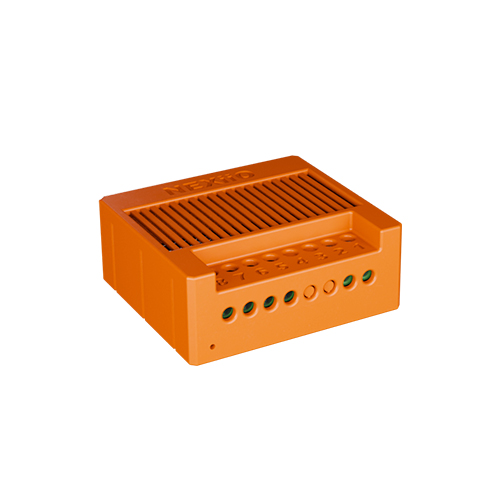

WiFi IR Transceiver

Elegant compact design for your home

The NEXiiO NEX12001908W00, IR-TRANSCEIVER is a versatile and innovative solution designed for a wide range of applications. Whether it's for residential use, multi-dwelling units (MDUs) like apartments and condominiums, or light commercial settings such as small office buildings, retail stores, restaurants, and gas stations, this device is ideal

Physical & Power

    CPU: ESP32-PICO-V3-02
    Flash size: 8 MB
    Wi-Fi: IEEE802.11 b/g/n, @ 2.4GHz
    Power supply: 90 - 250 VAC 50/60Hz
    Power consumption: less than 0.5W
    Installation: Embedded
    Dimension: 37x42x16 ±0.5 mm / 1.46x1.65x0.63 ±0.02 in
    Weight: 17 gr ±50
    Screw terminals max torque: 0.4 Nm / 3.5 lbin
    Conductor cross section: 0.5 to 1.5 mm² / 20 to 16 AWG
    Conductor stripped length: 5 to 6 mm / 0.20 to 0.24 in
    Shell material: ABS Flame-Retardant
    Working Humidity: < 85 % RH
    Working Temperature: -20 °C to 70 °C / -4 °F to 158 °F
    Storage Temperature: -20°C ~ +70°C

Radio information

    RF band: 24010 – 2495 MHz
    Max RF power: <20 dBm
    Wi-Fi protocol: 802.11 b/g/n
    Wi-Fi Ranges:  Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)

Firmware Capabilities

    More than 10,000 brand included for AC devices
    More than 10,000 brand included for TV Devices
    Schedules: 8
    Direct scenarios: 1 (Digital inputs)

NETWORKING

    Protocols support: IPv4, HTTP, HTTPS, DNS, TCP, UDP, TLS, ICMP, DHCP, ARP,

SMART HOME

    Protocol: UAP
    Controlling feature: Support all UAP Devices
    Limited Scenario features
    Control from iOS and Android App
    Universal inputs (digital / analog)
    External NTC sensors up to a distance of 3 meters
    YwaY: Support  YwaY Master and client mode
    User friendly
    OTA Update
